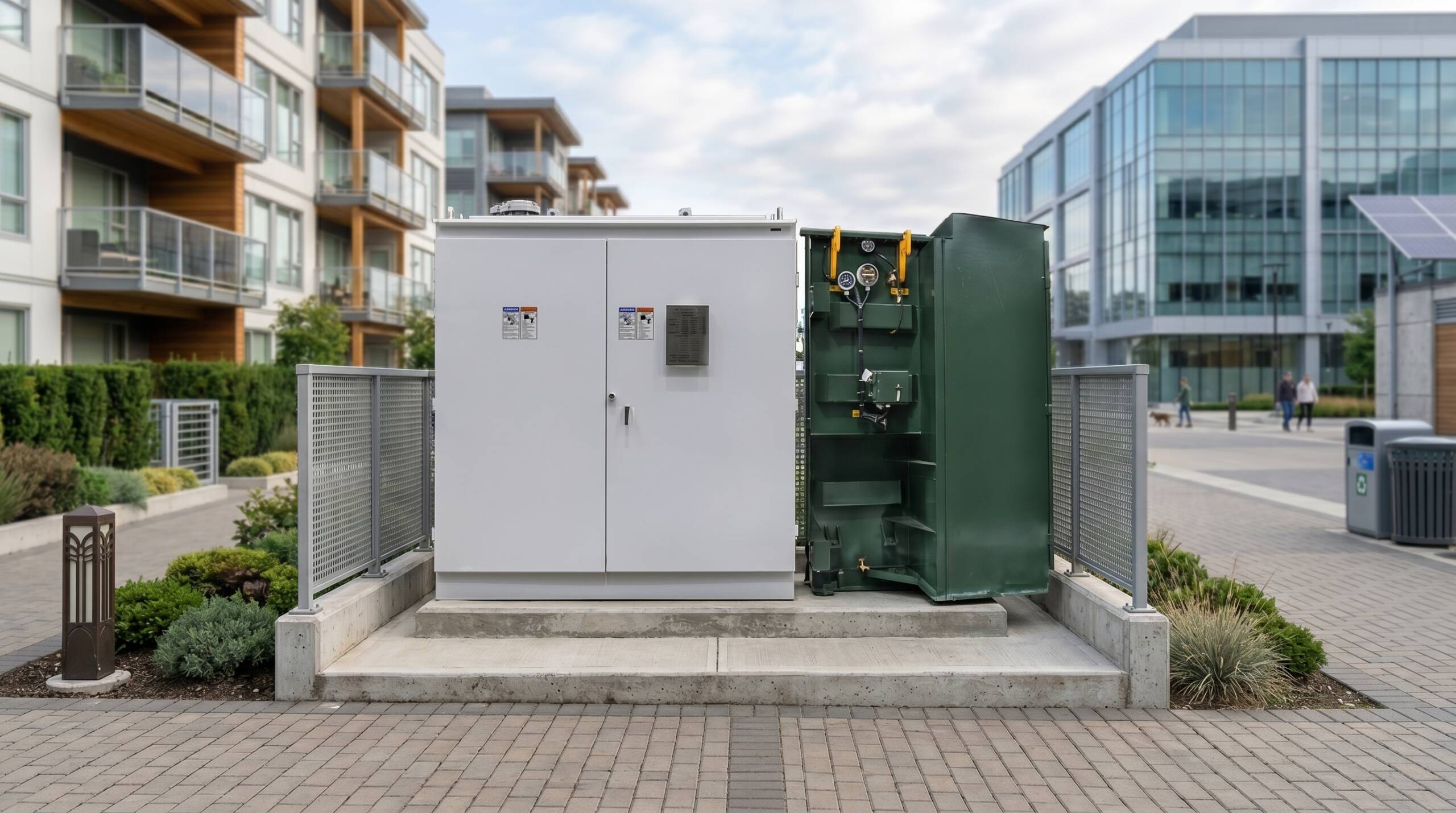

Pad Mounting Transformers. ANSI/IEEE Qualified. Export Ready.
Pad-mounted transformers up to 10 MVA, 34.6 kV — manufactured to ANSI/IEEE standards and actively exported to utilities and developers in the USA, Canada, and Africa.
Product Overview
Indian Manufacturing. International Standards. Global Supply.
KLR Pad Mounting Transformers are the product of a deliberate decision to build to international standards from day one — not to adapt a domestic design for export. Manufactured at our IDA Pashamylaram facility to ANSI/IEEE requirements, they are qualified for utility procurement processes in North America and Africa, and are already in active supply to projects in the USA, Canada, and Africa.
The pad-mounted format — completely enclosed, tamper-proof, ground-mounted — is the standard for underground distribution networks in North American utility systems and is increasingly specified for urban and commercial development projects internationally. KLR manufactures both loop-feed and radial configurations, with integrated switching and protection, to customer specification.
Technical Specifications
- Up to 10 MVA Capacity range:
- Up to 34.6 kV (primary); 120/240V or 277/480V secondary configurations for North American market Voltage class:
- Dead-front, tamper-resistant, padlock-secured cabinet Enclosure:
- Loop-feed (with through-bushing) and radial — to specification Configuration:
- ONAN (self-cooled) standard Cooling:
- Mineral oil; biodegradable fluid option available Insulation:
- ANSI/IEEE C57.12.00, C57.12.26 (pad-mounted compartmental), ANSI C57.12.34 (network transformers) as applicable Standards:
- Full ANSI factory tests; test reports issued with every unit; third-party inspection available Testing:
- Full export compliance documentation — certificates of origin, test reports, conformity declarations as required Export documentation:
Key Features
✓ qualified for North American utility procurement and developer specifications without adaptation to ANSI/IEEE compliance
✓ no exposed live parts; safe for public-access locations, underground networks, and commercial sites. Dead-front design
✓ supports primary cable loop continuity for improved network reliability in underground distribution Loop-feed configuration
✓ elbows, fused switches, or sectionalising switches to specification, Integrated switching and protection
✓ eliminates pole-mounting risk and reduces right-of-way requirements in urban environments Compact ground-mount footprint
✓ full shipping, compliance, and certification documentation for international supply chains Export-documented
✓ actively supplied to utilities and developers in the USA, Canada, and Africa. Proven export track record
Applications
● Urban underground distribution networks — North American and international
● Commercial real estate developments — retail, office, mixed-use
● Industrial parks and campuses requiring a discrete ground-level power supply
● Residential subdivision development — underground service connections
● EV charging infrastructure — high-density charging installations
● Data centre and critical facility power supply
● International utility and developer projects requiring ANSI/IEEE compliance
Why KLR for Pad Mounting Transformers
✓ not an IS product modified for export; a purpose-designed product for international markets. Built to ANSI/IEEE from the design stage
✓ active supply to USA, Canada, and Africa demonstrates real-world international qualification, Proven export record
✓ Indian manufacturing with full export infrastructure provides cost and schedule advantage versus North American suppliers, with competitive lead times
✓ test reports, certificates of origin, conformity declarations, and customs documentation as required. Full export documentation
✓ pre-order specification guidance and post-delivery support for international procurement teams, Technical support
Enquire About Pad Mounting Transformer Supply.
Share your project location, kVA rating, primary voltage, configuration (loop or radial), and timeline — we will provide a specification and export quote within 2 business days.
