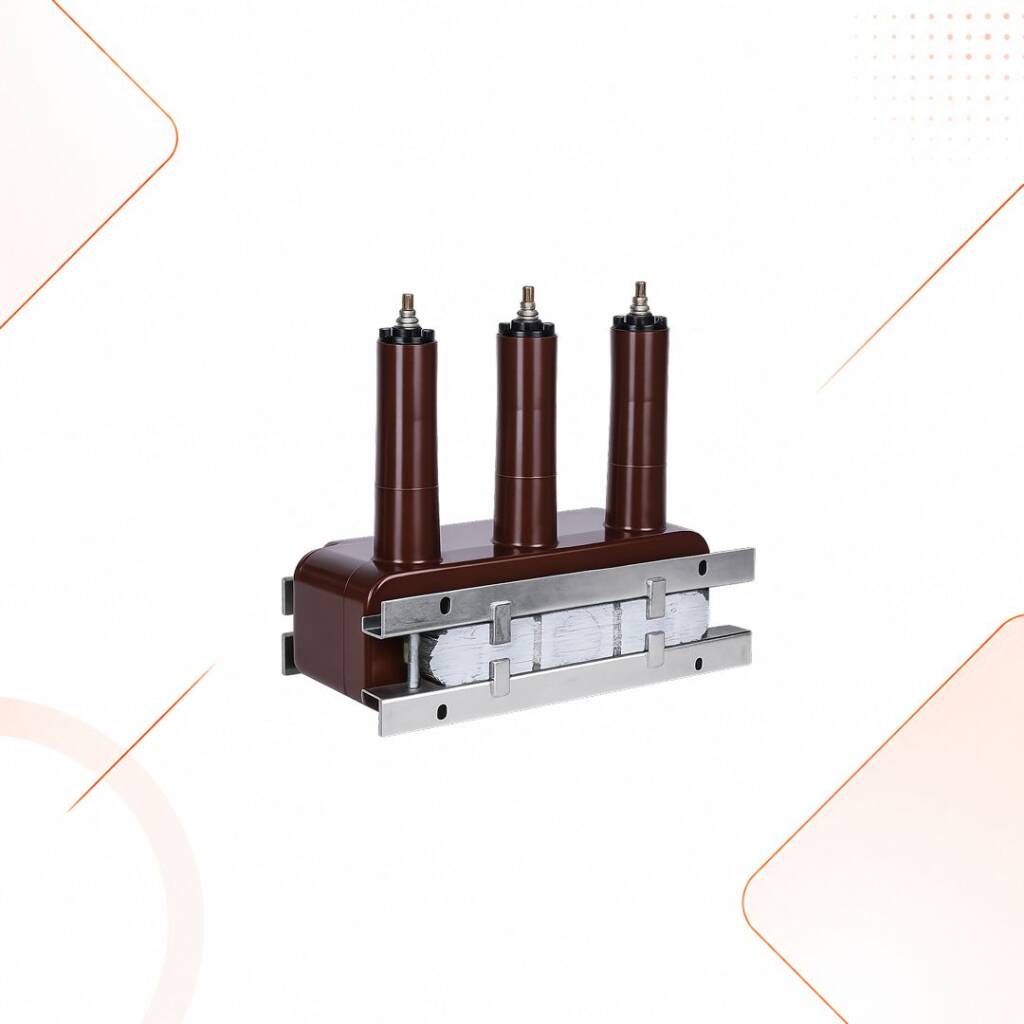

MV RESIN-CAST VOLTAGE TRANSFORMERS

Conforms to IEC 61869-1 & 3

Technical Specifications

Parameter Specification
Rated Voltage 3.6 kV to 36 kV
Basic Insulation Level As per relevant standard
Insulation Class E
Rated Frequency 50 Hz
Rated Primary Voltage Up to 36 kV / √3
Rated Secondary Voltage 110 V / √3
Class of Accuracy 0.2, 0.5, 1.0, 3P, 6P
Rated Burden Up to 200 VA
Over Voltage Factor 1.2 continuous & 1.9 for 8 hrs.
