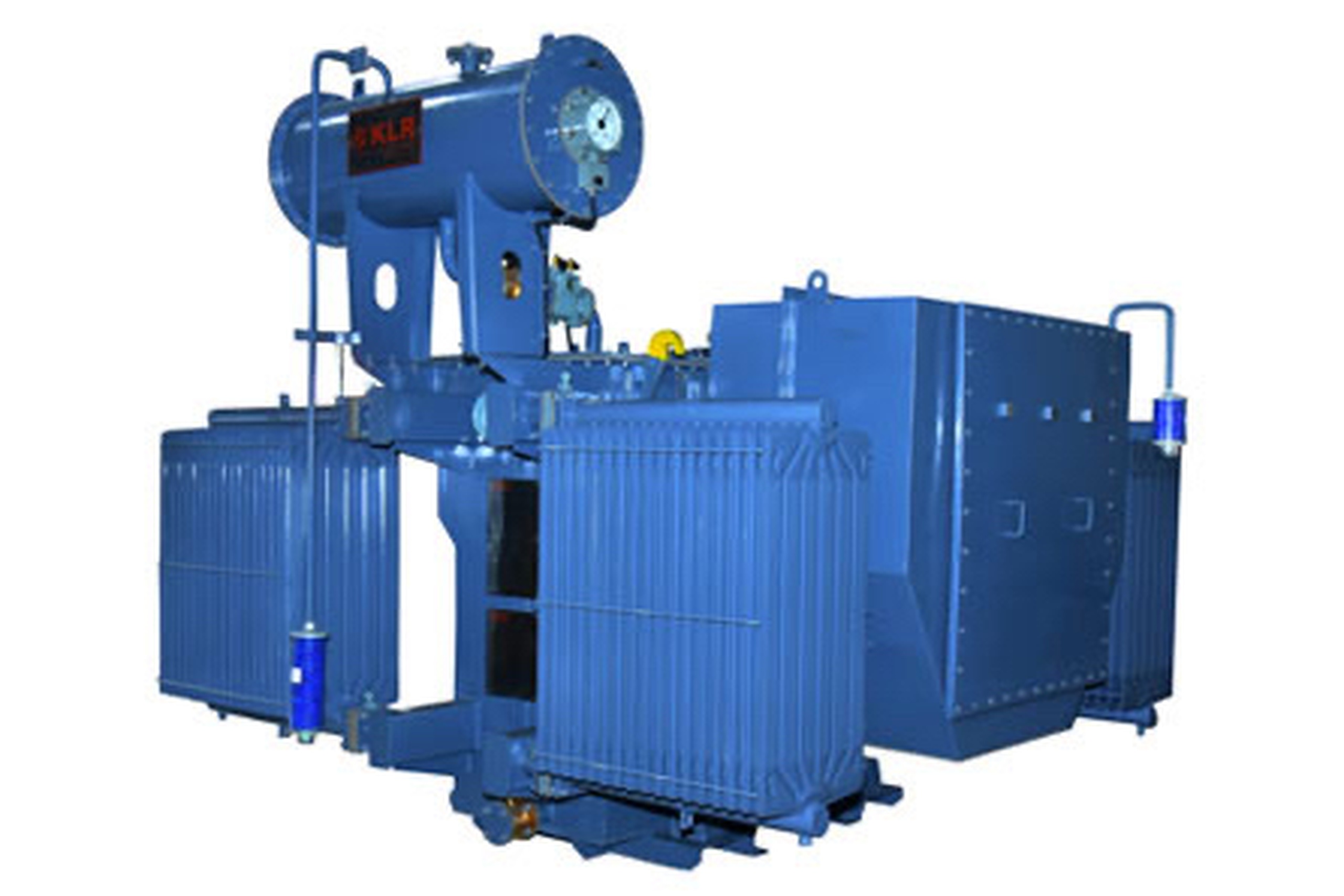

Wind power transformers up to 6.5 MVA, 33 kV
| Parameter | Specification |
|---|---|
| Capacity range | Up to 6.5 MVA |
| Voltage class | Up to 33 kV |
| Insulation system | Class A & Class B Oil-Impregnated Paper |
| Cooling | ONAN / ONAF |
| Tank design | Corrugated Sealed Tank or Conventional Radiator Type |
| Standards | IEC, IS, ANSI, IEEE |
| Winding material | Electrolytic Grade Copper or Aluminium |
| Winding type | Foil / Disc / Helical / Layer |
| Vector group | Dyn11 / YNd1 / Other Vector Groups on Request |
| Insulation levels (kVp) | Up to 170 kVp (As per Voltage Class and Applicable Standards) |
| Tap changer | Off-Circuit Tap Changer / On-Load Tap Changer (In-Tank or External) |
| Frequency | 50 Hz / 60 Hz |
| Testing | Complete Routine Tests as per IS, IEC, ANSI, IEEE. Type Tests on request. |
Share your turbine rating, installation type (tower-base or nacelle), and grid connection voltage we will provide a technically specified proposal.
