KLR Transformers

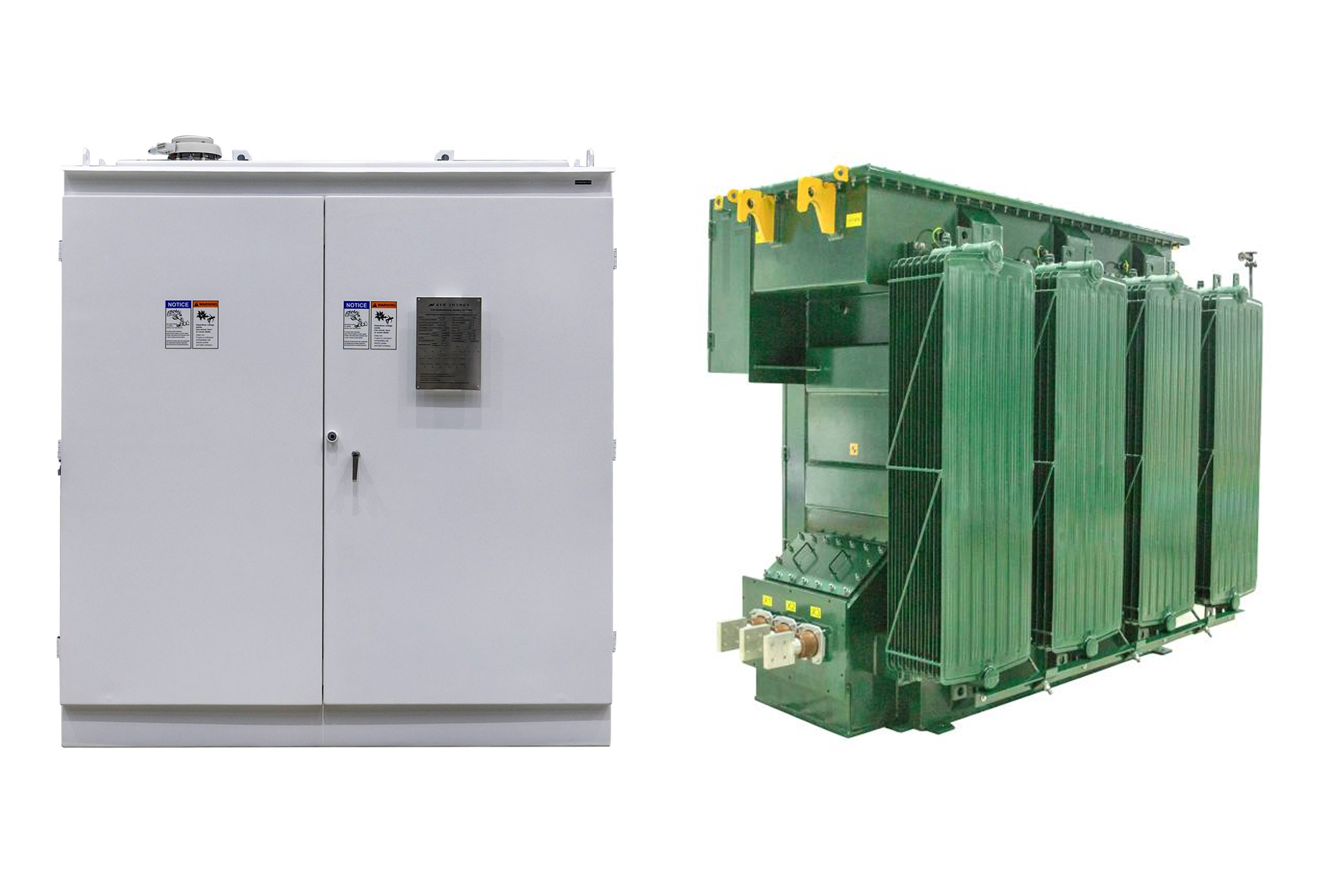

Pad Mounting Transformers

Manufactured in India. Designed for the World.

KLR Pad Mounted Transformers are built to meet the demanding requirements of global markets, conforming ANSI, IEEE, CSA, UL, and DOE standards while delivering safety, reliability, and long-term performance.

Technical Specifications

Parameter Specification
Capacity range 100 kVA to 10000 kVA
Voltage class Up to 38.5 kV
Insulation system Class A & Class B Oil-Impregnated Paper
Cooling ONAN / ONAF / KNAN / KNAF
Enclosure type Tamper-Resistant, Dead-Front or Live-Front Pad Mounted Construction
Tank construction Welded Sealed Tank or Bolted with Tamper-Proof Compartments
Standards ANSI, IEEE, CSA, UL, and DOE
Winding material Electrolytic Grade Copper or Aluminium
Winding type Foil / Disc / Helical / Layer
Temperature rise Up to 65°C
Vector group Dyn11 / YNd1 / Other Vector Groups on Request
Insulation levels (BIL) Up to 200 kVp (As per Voltage Class)
Tapping range DETC
Frequency 50 Hz / 60 Hz
Testing Complete Routine Tests as per IS, IEC, ANSI, IEEE. Type Tests on request.

Optional Features

  • Dead-Front or Live-Front Construction
  • Loop Feed or Radial Feed Configuration
  • Bay-O-Net and Current Limiting Fuse Protection
  • Load Break Switch (2-Way / 4-Way)
  • SCADA / Remote Monitoring Compatibility
  • Liquid Temperature Indicator (OTI)
  • Winding Temperature Indicator (WTI)
  • Pressure Relief Device (PRD)
  • Anti-Corrosive Paint System for Coastal Environments C4/C5
  • FR3 Natural Ester Fluid, Synthetic Ester Fluid & ASTM
  • Tamper-Proof Locking System

Enquire About Pad Mounting Transformer Supply.

Share your project location, kVA rating, primary voltage, configuration (loop or radial), and timeline, we will provide a specification and export quote within 2 business days.

Request a Quote
View Type Test Reports
